When Is a Low-Profile Roof Service Entry System the Right Choice?
A low-profile roof service entry system can be useful when multiple building services need to pass through the roof, but the project does not require the height, internal space or access provided by a full roof enclosure.
Rather than treating ductwork, pipework, electrical containment and other services as completely separate roof penetrations, a purpose-designed system can bring these requirements together within a defined roof zone.
This is the thinking behind TopBox Compact, a new addition to the Hill Grwp Ltd TopBox range developed specifically for projects where the service-entry requirement remains, but the full enclosure does not.
Why Can Multiple Roof Service Penetrations Become Difficult to Coordinate?
Modern commercial and industrial roofs can carry a considerable concentration of building services.
Mechanical ventilation ductwork may need to pass through the same area as pipework, electrical containment, cabling and control services, while each route also needs to work with the roof structure and roofing system.
Where each penetration is considered separately, the project team may need to coordinate:
Roof opening positions
Ductwork dimensions
Mechanical pipework routes
Electrical containment
Cable routes
Required separation between services
Structural support
Roofing and waterproofing details
Access for installation and future works
None of these requirements is unusual on its own.
The challenge comes when several of them need to occupy the same relatively small area of roof.
This is where planning the service-entry arrangement as a single coordinated roof zone can become useful.
When Is a Full Roof Enclosure More Than You Need?
A conventional roof entry enclosure such as the standard TopBox system remains valuable where additional internal space, access or equipment accommodation is required.
But not every project needs that level of enclosure.
For some applications, the requirement is much simpler: several building services need a clearly defined and purpose-built route through the roof.
A low-profile roof service entry system can therefore be considered where:
A full-height roof enclosure is unnecessary
Available roof height is restricted
Roof-level space is limited
Several services are concentrated within one area
A lower visual profile is preferred
Service positions can be established during the design stage
A greater proportion of the service-entry arrangement can be prepared before reaching site
The objective is not simply to make an existing enclosure smaller.
It is to provide only the roof service-entry function that the project actually requires.
TopBox Compact has been developed by Hill Grwp Ltd as a low-profile addition to the existing TopBox range.
Manufactured in GRP and configured around the individual project, it provides a purpose-built structure for bringing multiple building services through a defined roof area without requiring a full-height enclosure.
The concept sits between two common approaches:
Individual roof penetrations
Suitable where only a small number of simple services need to pass through the roof.
Designed where multiple services benefit from being brought together into a bespoke, low-profile roof service arrangement.
Better suited where the project also needs greater enclosure space, internal access or equipment accommodation above roof level.
This gives designers and contractors another option rather than having to choose between separate penetrations and a considerably larger enclosure.
One of the main principles behind TopBox Compact is that the building services should help determine the product configuration - rather than the project team having to force its services around a fixed standard layout.
Depending on the project, the system can be configured around services including:
Ventilation ductwork
Mechanical pipework
Electrical containment
Cable routes
Control and communication services
Other project-specific MEP requirements
The number, position and size of the service-entry sections can be developed around the agreed project information.
This means important service locations can be considered before manufacture and incorporated into the final GRP arrangement.
For projects with several MEP services concentrated within one area, that can provide a more organised starting point for coordination between the different disciplines.
There is no single TopBox Compact configuration intended to suit every roof.
Different buildings have different roof openings, service routes, structural arrangements and MEP requirements.
TopBox Compact can therefore be developed around project-specific information including:
Overall required dimensions
Roof opening dimensions and location
Number of service routes
Ductwork sizes
Pipework requirements
Electrical containment dimensions
Required service-entry positions
Service separation
Installation and lifting considerations
External finish
Colour requirements
This bespoke approach is particularly important when the available roof area is restricted or when service locations have already been established within the wider MEP design.
TopBox Compact is manufactured off site by Hill Grwp Ltd.
Once the required configuration has been agreed, the principal dimensions and service-entry positions can be incorporated during manufacture rather than relying entirely on fabrication after the project reaches roof level.
Potential project benefits include:
Predetermined service positions
Bespoke dimensions
Controlled GRP manufacture
Reduced roof-level fabrication
Less reliance on later site modification
Project-specific finish and colour options
This does not remove the need for coordination between the MEP, structural and roofing teams.
Instead, it provides those teams with a defined manufactured component around which the final roof and service interfaces can be planned.
A roof service entry is only one part of the complete roof detail.
The final connection between TopBox Compact, the supporting roof construction and the roofing or waterproofing system still needs to be coordinated as part of the overall project design.
That distinction is important.
TopBox Compact provides the GRP service-entry structure. The final roof interface should be developed alongside the relevant roofing, structural and MEP requirements for the individual project.
Early coordination is therefore valuable, particularly where several trades have responsibilities around the same roof area.
The difference between the two products is primarily about function, rather than simply size.
The principal requirement is getting services through the roof
A low roof profile is desirable
Significant internal enclosure space is unnecessary
Several services need to be organised within one roof zone
The MEP layout can be established before manufacture
Greater enclosure space is required
Internal access is needed
Equipment needs to be accommodated above roof level
The service arrangement requires a more substantial enclosure
Additional protected internal space forms part of the project requirement
In simple terms:
TopBox Compact is focused on service transition.
TopBox provides service transition plus greater enclosure space and functionality.
What Information Helps When Planning a Compact Roof Service Entry?
The earlier the key service information is available, the easier it is to establish whether a compact system is appropriate.
Useful information can include:
Roof plans
Proposed roof opening
MEP coordination drawings
Duct sizes and locations
Pipework routes
Cable and containment dimensions
Required separation between services
Relevant structural information
Roof build-up details
Installation constraints
Complete construction information is not necessarily required for an initial enquiry.
Providing the available roof and MEP drawings gives the Hill Grwp Ltd team a starting point from which the project requirements can be reviewed.
The concept can be relevant across a range of commercial and industrial projects, particularly where multiple building services are concentrated within defined roof areas.
Potential applications include:
Commercial developments
Industrial facilities
Warehousing and logistics buildings
Manufacturing facilities
Mechanical ventilation installations
Plant and service areas
Electrical distribution routes
Combined MEP service zones
Refurbishment projects introducing new roof services
Projects with restricted roof height or available space
The suitability and final configuration will always depend on the individual building and service requirements.
TopBox Compact expands the Hill Grwp Ltd TopBox range by addressing a different type of roof-entry requirement.
It gives project teams an option that is more coordinated than a collection of individual service penetrations, but considerably more compact than a full roof enclosure.

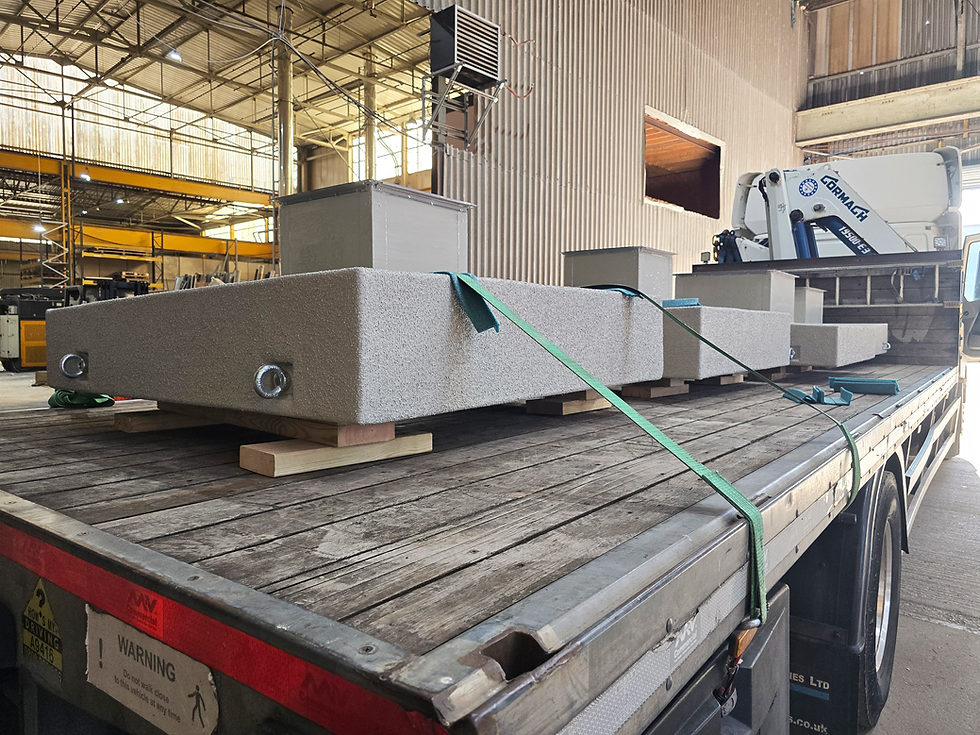

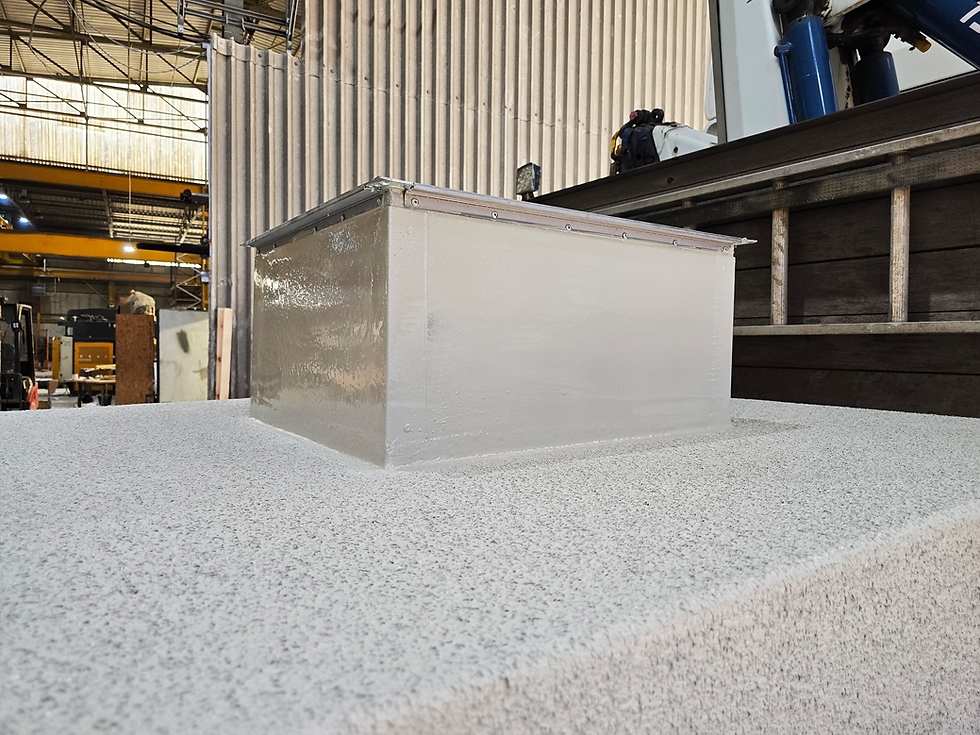

The first TopBox Compact units have now been manufactured, demonstrating the low-profile GRP format and the flexibility to configure individual service-entry sections around the project.
As further units progress through installation, we will be sharing more project information and completed site examples.
For now, our new TopBox Compact brochure provides a closer look at the system, its purpose and where it fits alongside the standard TopBox range.
If you are currently coordinating ductwork, pipework, electrical containment or several MEP services through a roof area, Hill Grwp Ltd can review the available project information and help establish the most appropriate TopBox format.
Send us your available roof drawings, MEP layouts or service-entry requirements to discuss your project.
Frequently Asked Questions
A low-profile roof service entry system provides a defined route for building services to pass through a roof without requiring the height and internal space of a full roof enclosure.
TopBox Compact is a bespoke GRP roof service entry system developed by Hill Grwp Ltd for projects requiring a compact, coordinated route for multiple building services through the roof.
Typical services can include ventilation ductwork, mechanical pipework, electrical containment, cabling, control services and other project-specific MEP routes.
TopBox Compact is primarily project-specific. Overall dimensions, service-entry positions and configurations can be developed around the roof and MEP requirements of the individual project.
TopBox Compact is suited to projects where the primary requirement is service entry through the roof with minimal above-roof structure. Standard TopBox is more appropriate where additional enclosure space, internal access or equipment accommodation is required.
Yes. One of the main purposes of TopBox Compact is to bring several project-specific service routes together within a defined roof zone.
No. TopBox Compact provides the GRP roof service-entry structure. Its final interface with the supporting roof and waterproofing system must be coordinated as part of the overall project design.
Useful information includes roof drawings, MEP layouts, proposed opening dimensions, ductwork and pipework sizes, electrical containment requirements and the proposed location of each service.
